EMH

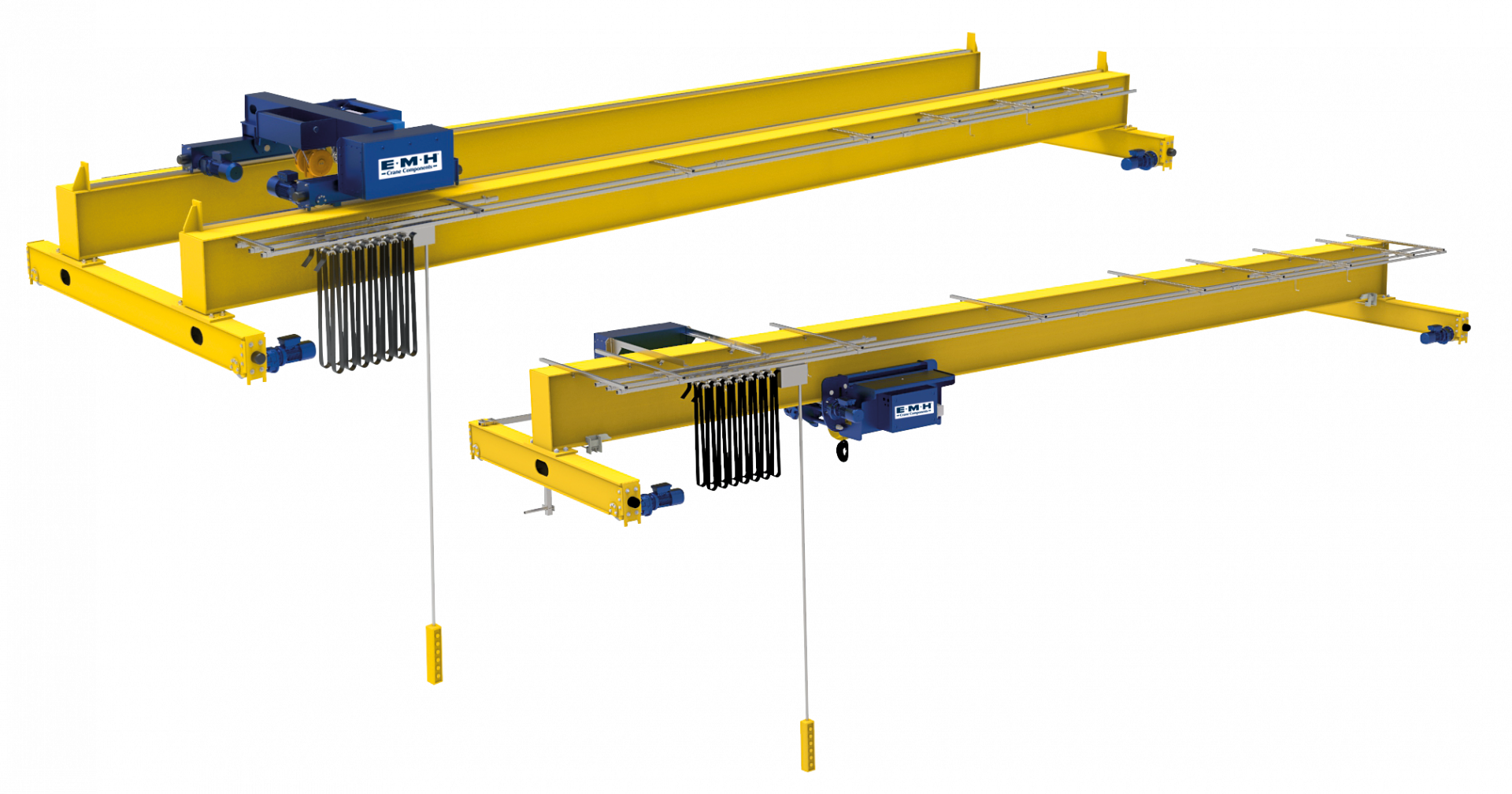

CRANE KIT

THE CRANE KIT IS AVAILABLE FOR THE FOLLOWING CRANE TYPES:

  • Double girder overhead crane with a capacity up to 80 ton
  • Single girder overhead crane with a capacity up to 25 ton
  • Spans up to 30 m as standard (larger spans available upon request)
  • Special crane kits available upon request
  • Additional equipment available
  • Main girder connection using high tension bolts

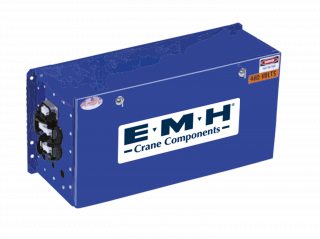

STANDARD EMH BRIDGE PANEL

  • IP54 or IP65 design
  • high quality electrical components
  • Complete with metal connectors
  • Control voltage: 48 V or 230 V
STANDARD BRIDGE PANEL | EMH Crane Components

STANDARD EMH CABLE FESTOON SYSTEM

  • Version with metal connectors
  • Version with metal cable trolleys
  • Rubber cables for outdoor operation

STANDARD EMH HOIST

  • Hook travel up to 40 m
  • Continuously variable trolley motion up to 32 m/min
  • Either 2-step or continuously variable hoisting movement
  • Capacity up to 80 ton
EMH Crane Kit | Customised Crane Components

STANDARD EMH ENDTRUCK

  • Continuously variable crane motion up to 63 m/min
  • Complete with main girder connection plate, bolts and crane bumper

STANDARD EMH PENDANT CONTROL



  • Version with metal connector
  • Integrated strain relief rope

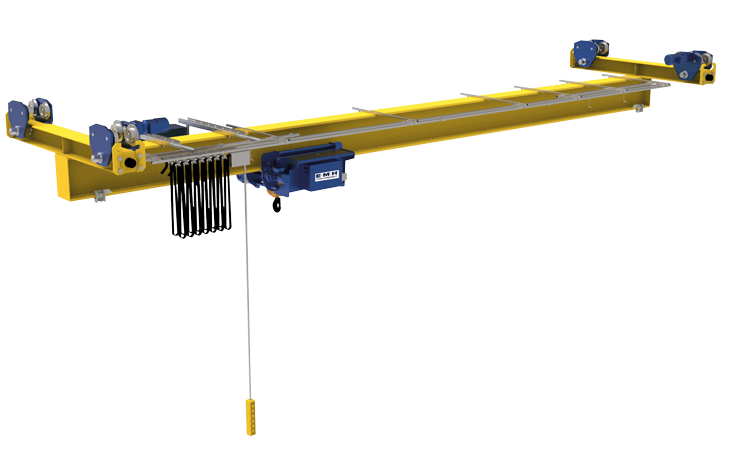

SINGLE GIRDER UNDERRUNNING CRANE

  • capacity up to 12.5 ton
  • span up to 18 m
EMH Crane Components Single Girder Underrunning Crane

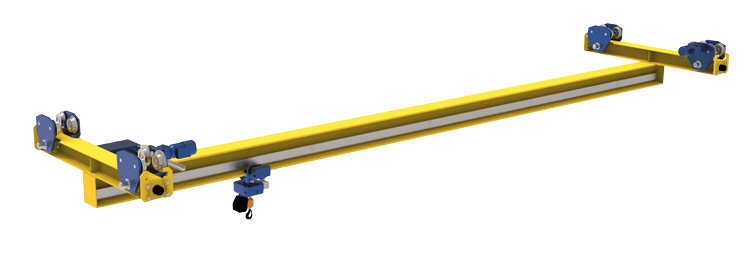

SINGLE GIRDER UNDERRUNNING CRANE WITH CHAIN HOIST

  • capacity up to 2 ton
  • span up to 18 m
Single Girder Underrunning Crane With Chain Hoist | EMH Crane Components

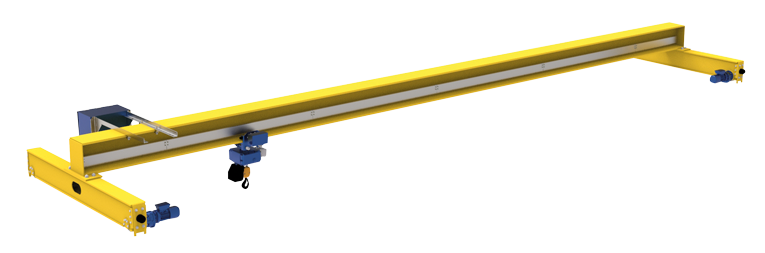

SINGLE GIRDER OVERHEAD CRANE WITH CHAIN HOIST

  • capacity up to 2 ton
  • span up to 18 m
Single Girder Overhead Crane With Chain Hoist | EMH Crane Components
